WePack Complete CIP System

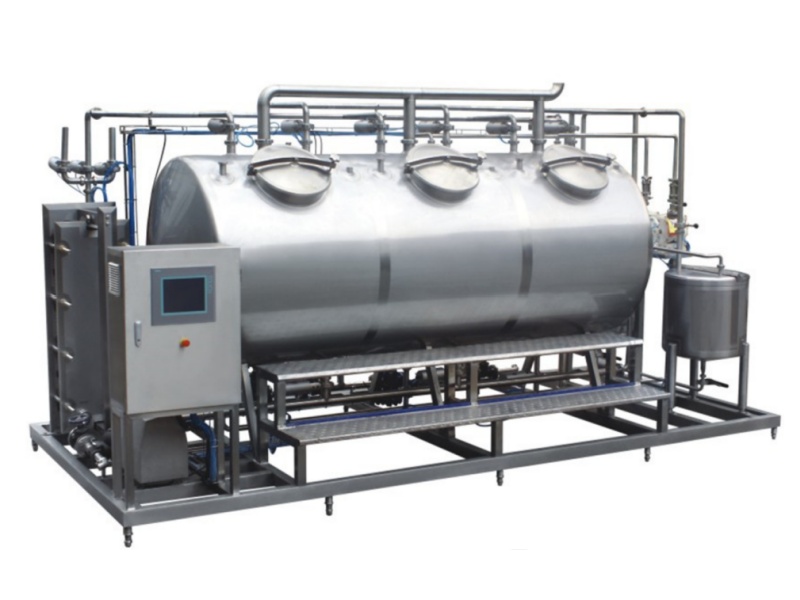

Fully Automatic CIP System
The CIP (Clean-In-Place) system aims to eliminate product residues, bacteria and other contaminants from production equipment, thereby ensuring the safety and quality of finished products.
- Complete CIP system suitable for small food units — all equipment mounted on a single platform
- Heating method: steam or electric
- Control type: fully automatic control (PLC + HMI)
- Number of tanks: 3 or 4 tanks
- Cleaning circuit: 1 to 5 independent loops

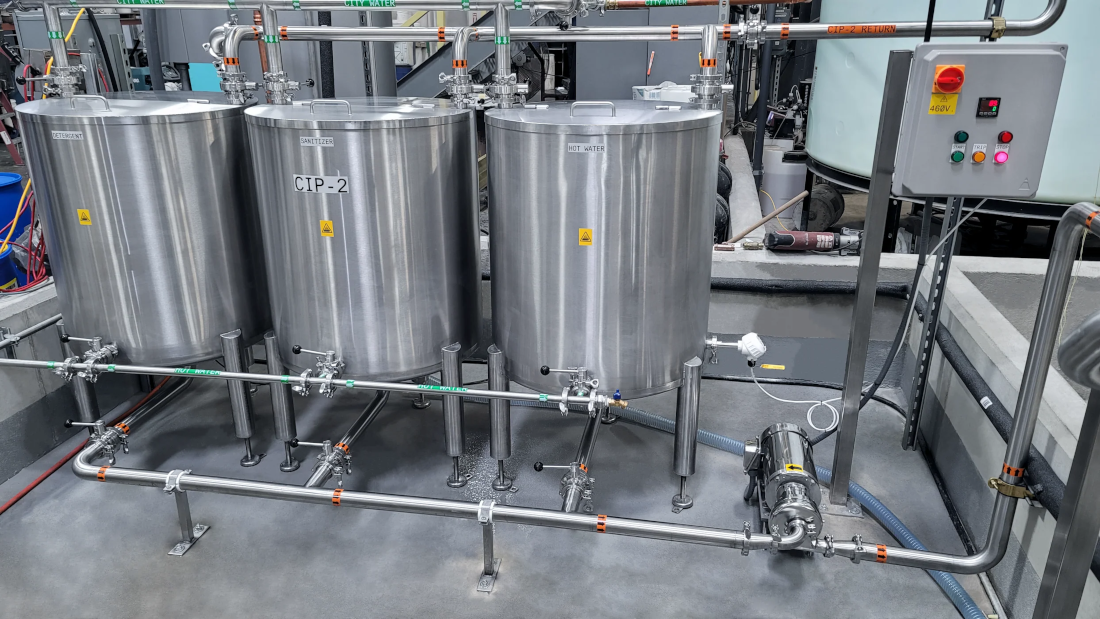

Semi-Automatic CIP System
The CIP (Clean-In-Place) system ensures the removal of residues, bacteria and contaminants without dismantling, preserving the hygiene of the production line and reducing machine downtime.
- Compact CIP system suitable for small and medium-sized production units
- Heating method: steam or electric
- Control type: semi-automatic control
- Number of tanks: 3 or 4 tanks
- Cleaning circuit: 1 to 5 independent loops
Key Components of the CIP System

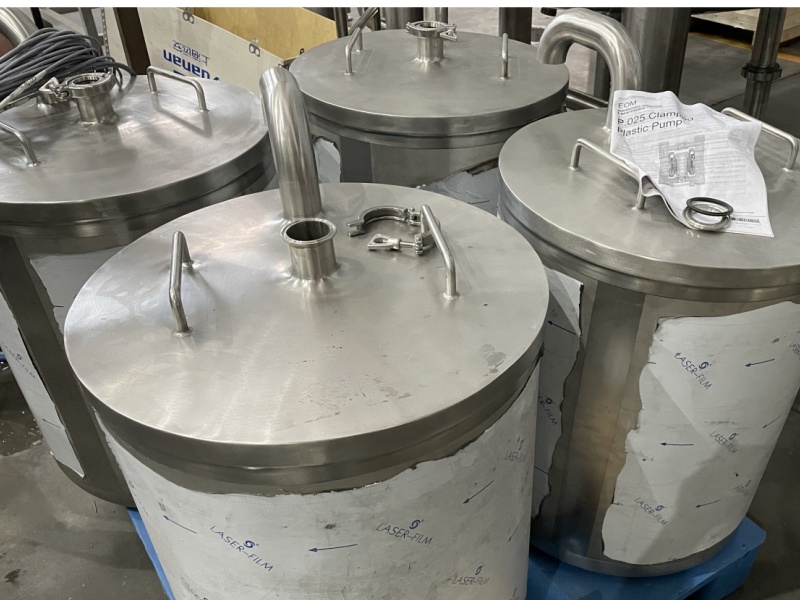

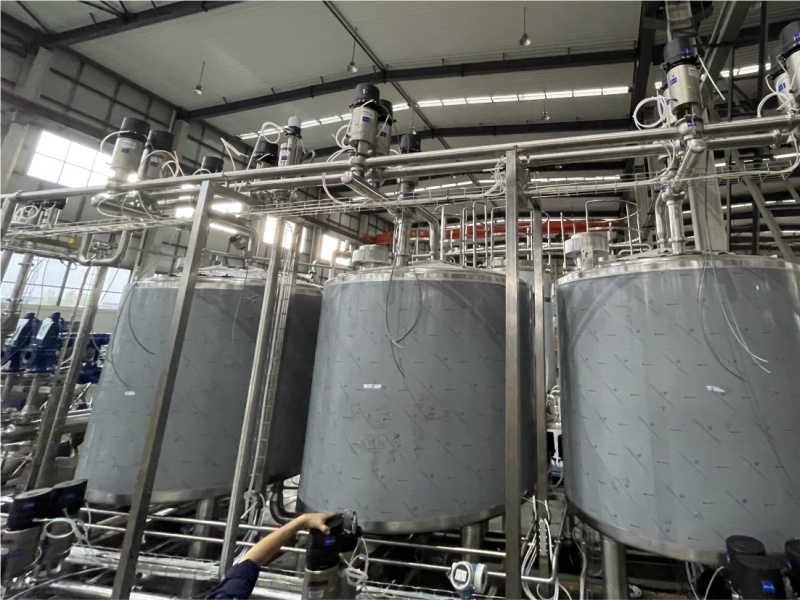

CIP tanks
- Acid tank (500 L – 10,000 L)
- Alkaline tank (500 L – 10,000 L)
- Hot water tank (500 L – 10,000 L)
- Clean water tank (500 L – 10,000 L)

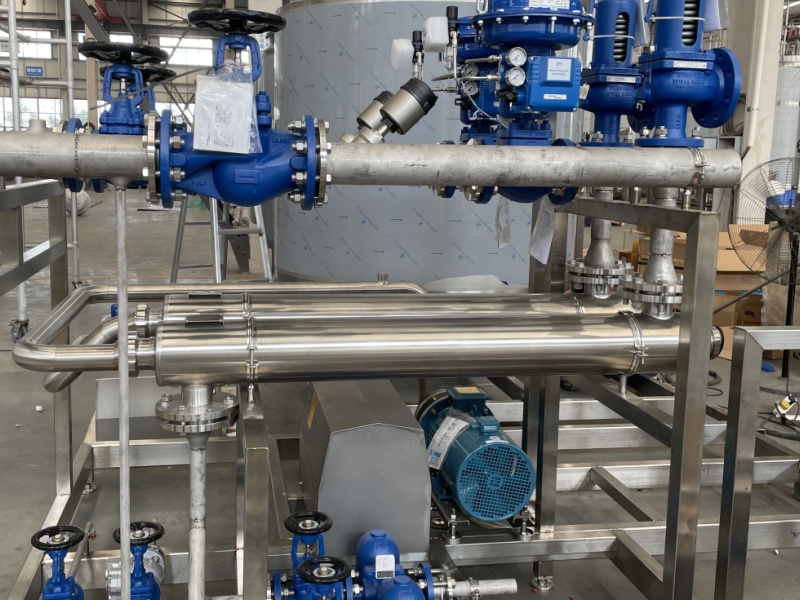

Concentrated Acid and Alkali Tanks
- Concentrated acid tank
- Concentrated alkali tank

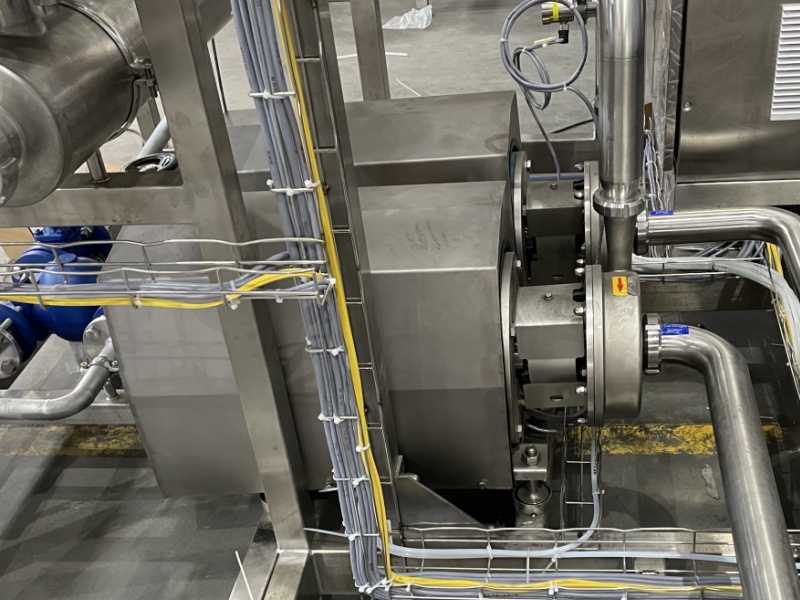

CIP Heat Exchanger
- Plate heat exchanger
- Tubular heat exchanger
CIP pumps
- Pneumatic diaphragm valve
- Sending pump
- Return pump
- Self-priming pump

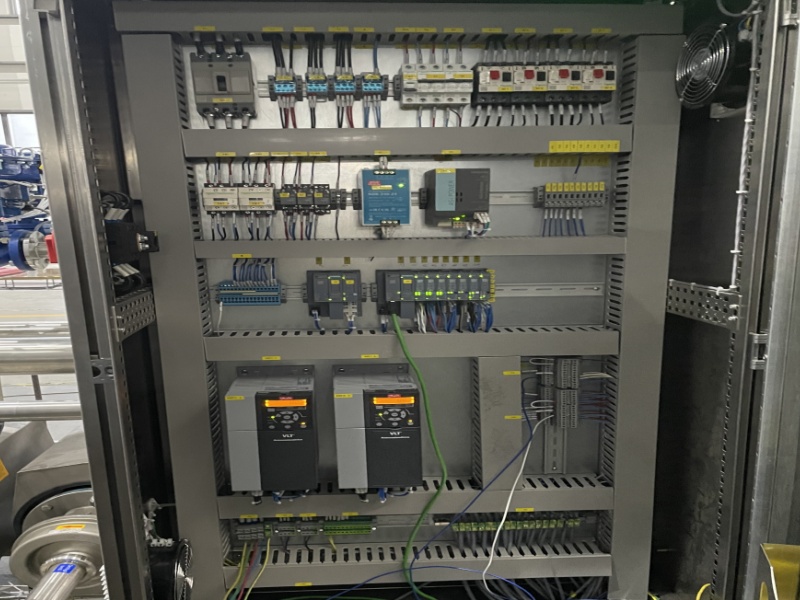

CIP Control System
Controlled by a programmable logic controller (PLC) in a dedicated control cabinet.
Our CIP program, perfected by years of experience, incorporates certified controllers guaranteeing continuous and stable operation over the long term.
The intuitive HMI interface reduces operator training time and displays the status of critical machine components in real time.
5-step cleaning cycle
Each cycle follows a precise and automated sequence to guarantee perfect hygiene.
Technical parameters
| Characteristic | SCIP-0.5 | SCIP-0.8 | SCIP-1 |
|---|---|---|---|
| Acid tank | 500 L — circular tube, plates, tubular | 800 L — circular tube, plates, tubular | 1000 L — circular tube, plates, tubular |
| Alkaline tank | 500 L — circular tube, plates, tubular | 800 L — circular tube, plates, tubular | 1000 L — circular tube, plates, tubular |
| Water tank | 300 L — circular tube, plates, tubular | 500 L — circular tube, plates, tubular | 600 L — circular tube, plates, tubular |
| Pump flow rate | 10 m³/h | 10 m³/h | 10 m³/h |
| Manometric head | 36 m | 36 m | 36 m |
| Pump motor | 4 kW | 4 kW | 4 kW |
| Dimensions (mm) | 3000 × 1500 × 1700 | 3500 × 2000 × 2200 | 4000 × 2000 × 2500 |
| Cleaning efficiency | ✓ 97% | ✓ 98% | ✓ 99.9% |
| Control | Semi-automatic | Semi/Automatic | ✓ Fully automatic |
| Industry 4.0 | Option | Option | ✓ Native |
Why Choose Our CIP System?
Expert team
Over 15 years of experience in designing and manufacturing CIP systems for the food and beverage industry.
Fair price & superior quality
Factory direct sales with the best quality to reduce your investment costs.
After-sales service & technical support
Technical assistance and after-sales support available 24/7 by a specialized team.
Global references
Over 100 systems in operation — USA, Europe, Middle East and Africa.
CIP System Applications
An essential cleaning system, widely used in:
- The dairy and milk processing industry
- The production of fruit juices and drinks
- The pharmaceutical industry
- Breweries and wine production
